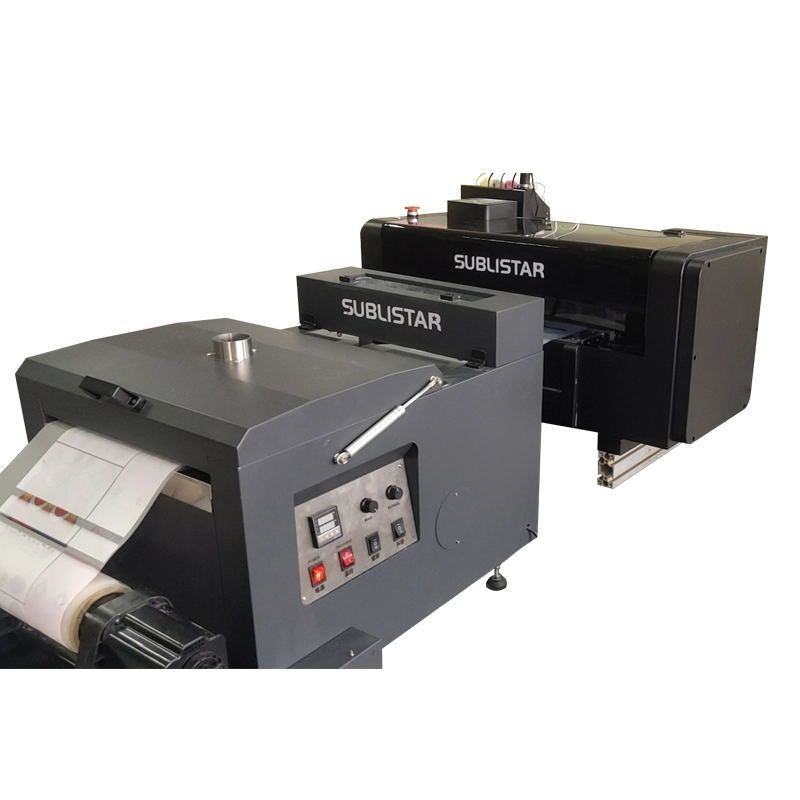

Model Type |
DTF-mini300 |
|
Print Head |
EPSON P600 5th Generation 6 Color Nozzle |
|
Print Resolution |
1440X1440dpi |
|
Print Speed |
Multi-speed gear can be adjusted |
|
Max Print Size |
A3/A3 Roll Materials |
|
Ink Type |
Pigment ink (C M Y BK+W) |
|
Feeding size |
50cm |
|
Operation Environment |
Temperature: 15°C~30°C, Humidity: 50%~75% |
|
Power |
50Hz/60Hz 110V/220V 10~20A |
|
Software |
AcroRIP White ver9.0 plus special software for coils |
|
Printer |
(Machine Size): 880*650*520mm (L*W*H) (Packing Size): 900*750*620mm (Net Weight): 20KG； (Gross Weight) : 30 KG |
|
Powder Machine |
(Machine Size): 900*550*500mm (L*W*H) (Packing Size): 1000*650*600mm (L*W*H) (Net Weight) : 25KG ； (Gross Weight): 35KG |
|
Applicable Substrate |
Cotton, nylon, polyester, 50/50 blends, spandex, chemical fiber, leather, PVC & EVA, Etc. |
|
Working Process
|
1.Design Pattern Use photoshop, illustrator or other software to design your pattern. 2.Print Your Design Adjust the printer parameters in the RIP software and use our printer and ink to print your pattern 3.Powdering Turn on the switch of the powder shaking machine, the machine will automatically powdering, and dry and fix the color. 4.Heat Press Use a heat press machine, set the temperature to 180 degrees, and time 15 seconds to transfer. |
|
New Features |
DTF Pro max series has upgraded the nozzle printing algorithm, suction system, tension system, and shaking powder system. Which improving the stability of the machine, prolong the service life of machine parts, and make the machine more efficient.The next generation oblique spray staggered inkjet printing, improved the printing speed, 4pass accuracy surpasses 6pass. During the printing process, the tension system prevents the print medium from stretching or shrinking, causing sudden registration errors. The front and rear suction system facilitates the pass through of the printing film and makes it very easy to cut a section of the sample during the printing process.The cone-shaped powder box not only saves dtf powder, but also disperses the heat of the machine at work, and extends the life of the motor |
